Evren Technologies Internship

Cut electrode-pad fabrication time 85% and built ear-worn bioelectronic devices from prototype to assembly.

As an engineering intern at Evren Technologies, a clinical-stage medical device startup in Gainesville, I built complete ear-worn bioelectronic devices for the Phoenix, an FDA Breakthrough-designated wearable that treats PTSD through vagus nerve stimulation, from prototype through assembly. I designed injection-molded components in Onshape, validated fit and manufacturability with 3D-printed prototypes, and applied design-for-manufacturing, quality checks, and troubleshooting throughout.

Role

Engineering Intern

Organization

Evren Technologies · Gainesville, FL

OnshapeDesign for manufacturing (DFM)Injection mold design3D printingStamp-press toolingSilicone prototypingQuality checksAssembly & troubleshooting

The Evren Phoenix controller beside an assembled ear piece fitted to a silicone ear model — A completed ear piece fitted to a silicone ear model, wired to the Phoenix controller for a functional check.

The Phoenix

Evren Technologies is a clinical-stage medical device startup in Gainesville building the Phoenix, an FDA Breakthrough-designated wearable that treats PTSD through transcutaneous auricular vagus nerve stimulation (taVNS). The device sits in the ear and delivers gentle electrical stimulation, so every component that touches skin has to be precise, comfortable, repeatable, and manufacturable at scale.

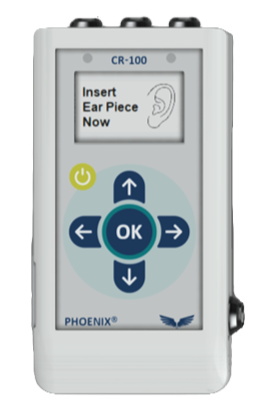

The Evren Phoenix CR-100 device with its earpiece controller interface — The Phoenix CR-100, Evren's taVNS device for treating PTSD.

Building the devices

I built complete ear-worn bioelectronic devices from prototype through assembly, applying design-for-manufacturing, quality checks, and troubleshooting at each step.

I designed the injection-molded components in Onshape and validated their fit and manufacturability with 3D-printed prototypes, which kept iteration fast and moved parts from prototype into production.

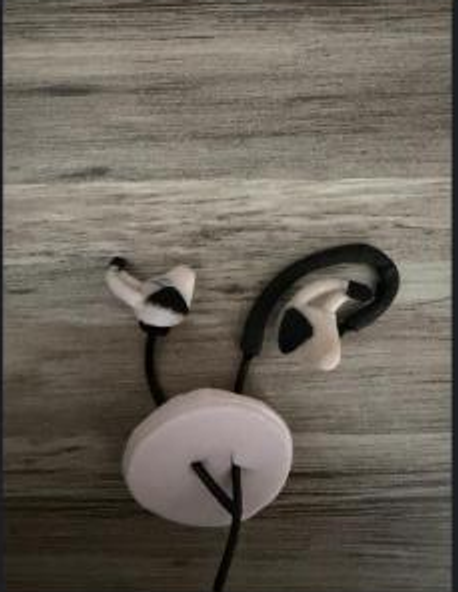

Full view of the silicone ear piece prototypes for the Evren Phoenix device — Ear piece prototypes developed in Onshape and validated with 3D-printed parts.

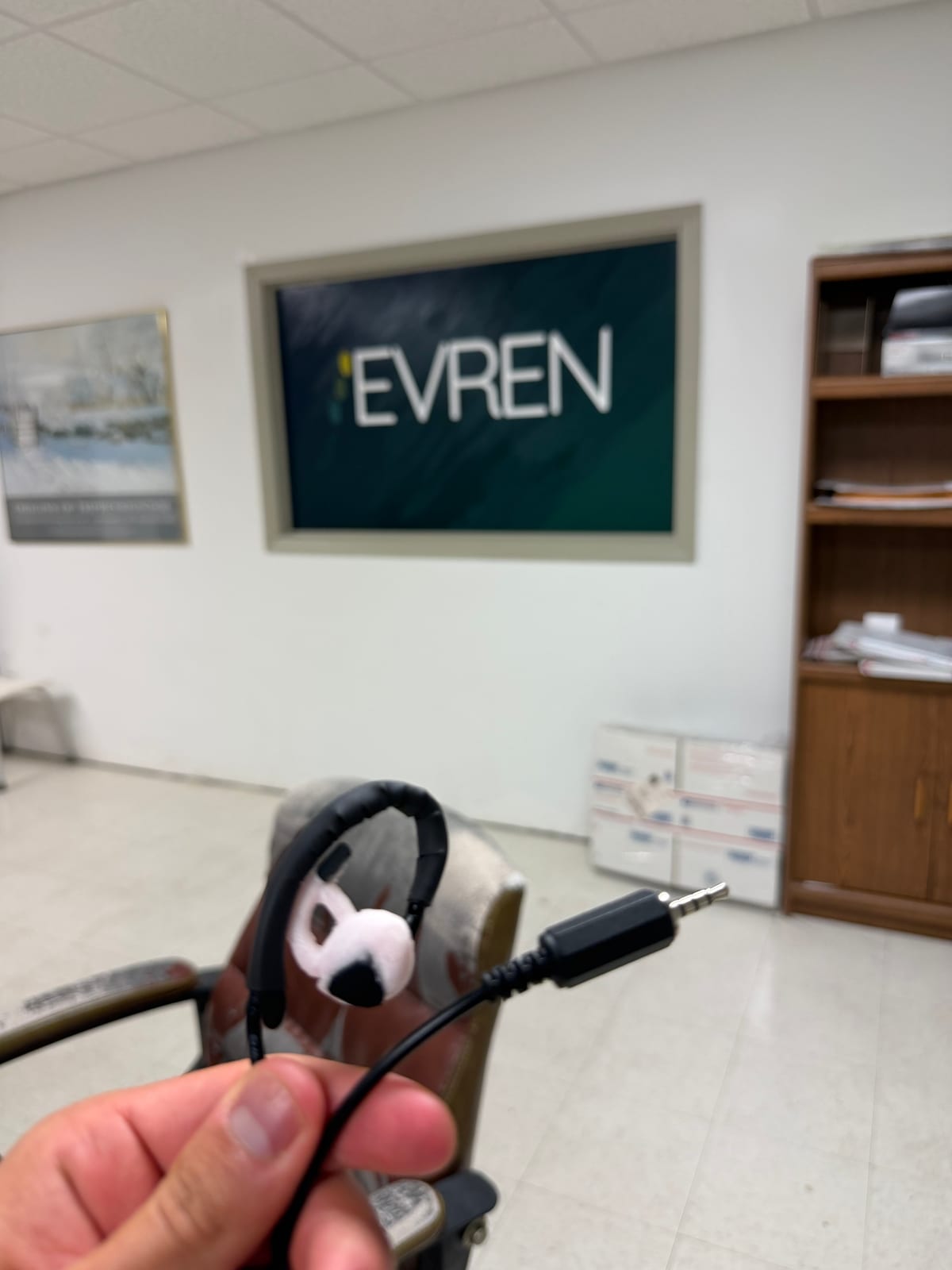

An assembled Evren ear piece held up in front of the Evren Technologies office sign — A finished ear piece straight off the bench at the Evren office.

Cutting fabrication time by 85%

I implemented stamp-press tooling and standardized the electrode-pad fabrication process, cutting pad-cutting time by 85% and improving repeatability across builds.
